1 HP 750 Watt Servo Motor 2024 Version Computer Controller with reverse on the fly.
Upgrade for two speed Mini Metal Lathes.
See my store for a different system that fits single speed spindle drive mini lathes.

Fits: Has been installed and tested on the below models.
May fit others.
Grizzly G8688 7" X 12" Two speed and only versions with high low gear.
Klutch (Northern Tool) 7" X 12" Two speed and only versions with high low gear.
Harbor Freight 7" X 10" Two speed and only versions with high low gear.
Harbor Freight 7" X 12" Two speed and only versions with high low gear.
Harbor Freight 7" X 14" Two speed and only versions with high low gear. (see below)
7" X 14" Two speed. (see below)
About Grizzly G0765 and all 7" x 14": This lathe has a different belt cover. It is very close but
not the same. Other 7" X 14" two speeds likely have this slightly different belt cover as well.
for now I would suggest asking for a price without the cover and plan on machining your own cover.
Sold complete with all the adapters required to install in the original motor location.

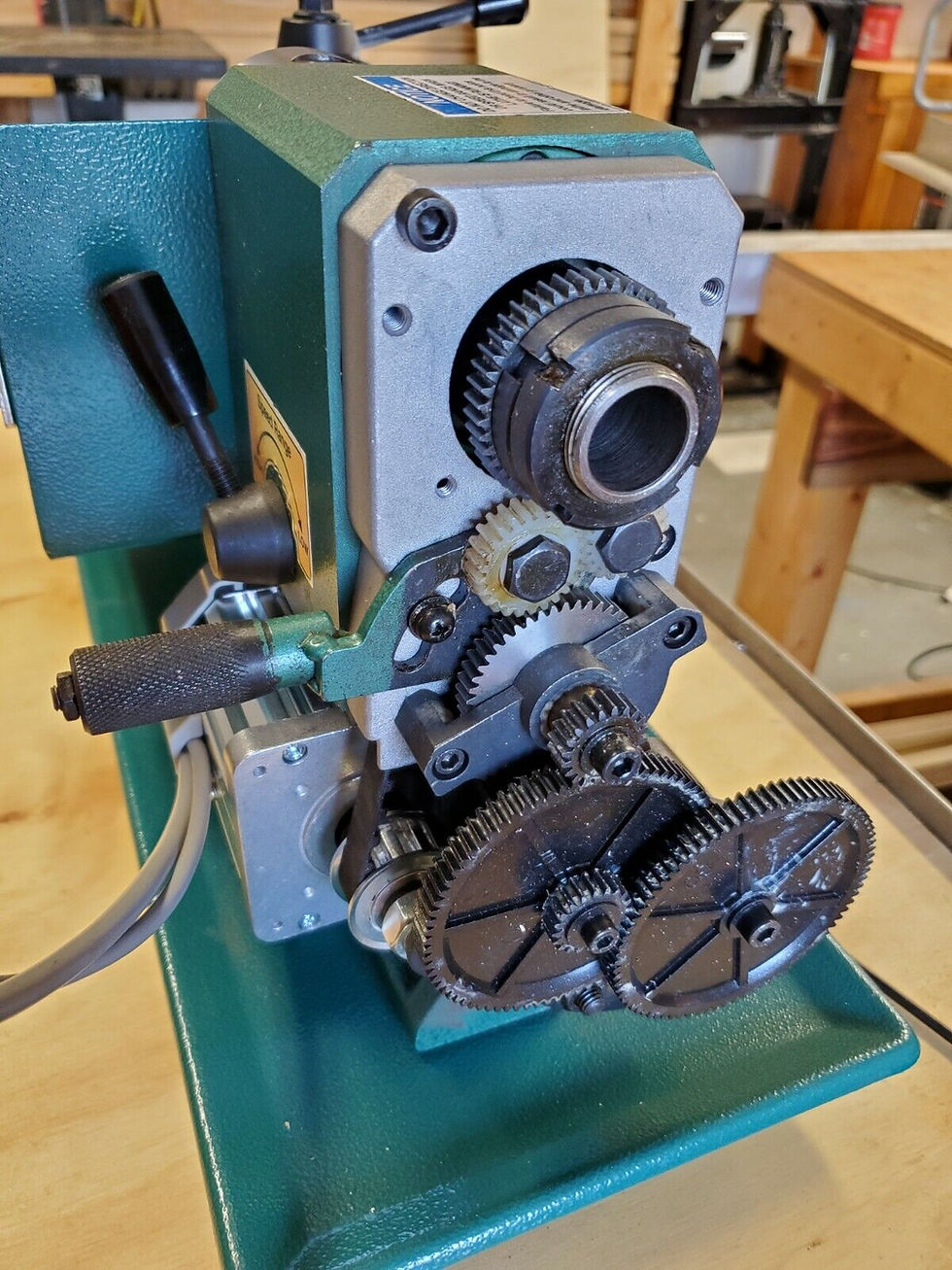

This allows for complete reinstall of all threading gears and auto feed systems.
The horsepower improvement is incredible.
Kinda like replacing the small block with a big block in your Mustang/Camaro muscle car. Just pure power, so much so
that you will never use all of it. This system provides full power at any speed and that includes Spindle RPM's as low as
50 RPM's in low gear. You may want to consider the high low gears inside the head and at least lube them with a high
end sling free grease.
Motor and spindle speeds + Reverse:
The motor speed can be programmed and or full range can be achieved with just the speed control rotary knob on the controller. Speed control programming only requires a few easy steps.
Reverse on the fly is simple; Just push the blue latching button.
Programming includes the ability to set bottom and top RPM range separately. In other words you can program the system to run the spindle at any speed or range of speeds you choose (see below).
Slowest speed achievable: Motor 200 RPM
Highest speed this one produced: Motor 4,500 RPM.

Mini Metal Lathe 2 speed 750W Servo Motor Upgrade Kit. Grizzly Harbor Freight

Name: Mini Metal Lathe 2 speed 750W Servo Motor Upgrade Kit. Grizzly Harbor Freight
SKU: 000002

SKU: 000002

$315.00

Excluding Sales Tax

A new 750 watt motor:
Motor will come with the motor mount installed This will require adjustment to fit your lathe. It will also come with the small timing pulley installed.

A 2024 control computer/driver with internal speed control.
This control unit is built by The Custom Crafter. It includes:
A. Thermal overload system with reset function.
B. E-Stop function.
C. The new reverse on the fly function.
D. Power out saftey circuit.
(see photos).
Make note: Color of the reset rocker switch is orange or green. If it is not, it does not have thermal overload protection.

The Custom Crafter made in USA motor mount.
installed on motor, see line 1).

Mounting hardware:
Inludes thick washers and grade 8 nuts.

One aluminum intermediate shaft timing pulley.
Custom made, polished and anodized.

One aluminum motor timing pulley.
Custom made, polished, anodized and fit the motor (see photos).

A new L050 1/2" wide timing belt.

A custom machined belt cover plate.
Fits the larger 10L050 belt.

The new 2024 control computer driver.
Comes programmed to optimal performance settings for this lathe.

Programming instructions are found on our website:
Writen in laymans terms by The Custom Crafter. Include fault codes and recommended settings.

Assembly instructions.
See the video: https://youtu.be/PZ7gm3j5BWI
Includes a text number for direct assistance from the custom Crafter.
Assembly requires some technical skill to include minor machine work. Text questions

Note: Check the photo of the red lathe in this listing.
If your lathe has holes like the red lathe instead of the normal slots, this motor will not fit without your ability to slot the cast iron lathe bed. Additionally if you return this item for this reason, you will pay shipping both ways.

You will need metric and domestic allen wrenches + a 13mm/1/2" deep socket and ratchet.

Some shorter/longer/better quality allen head metric bolts (not included) may also be required, especially to clear the timing belt as the belt cover is machined thinner to allow for the larger belt. This means do not over tighten and check first to make sure your bolts are exactly the right length and thread. This is because many manufactures use inferior bolts. These inferior bolts will be slightly too long, too short or most common just a few thousands too small in diameter where they will pull and damage threads.

See Video: https://youtu.be/PZ7gm3j5BWI
This system has so much more power that it becomes tempting to see just how much you can cut in a single pass. Do not do this because the rest of the mini lathe is not built strong/stable enough for this kind of abuse. If you jam it, you may damage the lathe to include broken cutters, parts and the control unit.This is abuse and no refunds will be issued for damage caused by abuse.

All lathes are dangerous, increasing the horsepower increases this danger.

It is your responsibility to insure fit and proper application. We make no guarantee of safety, application or that this product is suitable for your intended use.

Our liability is limited to the purchase price of this item.
Certain items are not returnable (See listings). Items costing less than $15 each are not returnable.

No reason is required.

Buyer pays return shipping.

Buyer provides tracking number that shows the item is in possession of the return shipping company before the 30 day time period runs out.

30 day time period starts when tracking shows original order as in possession of USPS.

Buyer to provide tracking # and shipping company name to be e mailed to servomotorkit@gmail.com within 36 hours of when issued.

Return must be shipped through USPS, UPS or FedEx.

Defective products are always returnable or refundable but will require documentation. See warranty time limits as they are directly related to if a product qualify's as defective. Shipping is always refunded on defective products. You are required to provide proper documentation of said defect.

Shipping is not refundable simply because you changed your mind or the product does not fit. It is your responsibility to look up and or measure to insure proper fit and suitability for your intended use. If you are not sure, ask us. If we say it fits in an e-mail or text message and it does not; than we pay the shipping instead of you.

All items returned must be in like new and unused condition:
This includes original packaging.

Missing packaging will result in a restocking charge of up to 10%

Installed items will not be refunded or charged up to 50% to restore and resell as a refurbished unit.

Swapping out parts will result in no refunds, all warranty's voided and no new orders accepted.
Try honesty instead, we will be happy to assist and find a solution that keeps both of us happy.
Limited 180 day parts warranty. Labor is buyers responsibility:
See details, what's covered and for how long etc below. Shipping both ways for all parts returned for warranty is the buyers responsibility. Parts returned will be inspected for unique identification mark and or abuse. If found to be abuse or missing the identity mark, no warranty exchange part will be provided and buyer will be required to pay shipping to get their parts back. Warranty exchange parts may or may not be new but instead refurbished or demos that I have from previous builds. Warranty starts on the day our records show the system as paid and not the date the item is actually received.

Servo Motor. - I will exchange a defective servo motor for up to 180 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Computer control unit. - I will exchange a defective control unit PCB for up to 180 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Improper instalation or abusive operation is not warrenty.
Print and keep your receipt, it could save you money.. We keep all parts in stock. That means if you brake it, we can fix it within days, not months to years waiting for parts from the large US sellers. Honesty goes a long way. If you smoked it just say so.
We will ask a few questions and then sell you the correct replacement parts. Optionally we will ask you to return the control unit for repair and repair it for you at $45 plus shipping.
