1.2 HP 900 Watt Motor with 2024 Controller.
With reverse on the fly, built in rotary speed control switch.
See video in images.

This Face Mount Version comes with Flush fit M6 X 1.0 mounting screws as seen in image 1.
If you prefer M8 button head, ask about ordering it machined to fit M8 - 1.25 button head bolts before you order.
New in box with internal rotary speed control.

Sold with a custom built matching control unit.
Speed is programmable for any range between 200 to 3,500 RPM
Note: Settings are limited to 10 RPM intervals.

See images for measurements.
Note: the maximum distance between control unit and motor is 28 inches.

Runs on typical 110 to 120 volt AC household power supply's

Motor programming + spindle speeds and Reverse:

The motor speed can be programmed to operate in any range chosen by the user.
Between 300 and 3,500 RPM's.
Note: Settings are limited to 100 RPM intervals.That means it can be set to 500 RPM but it cannot be set to 550 RPM as the next step is 600 RPM
The full range of speed (RPM's) can also be controlled with just the speed control knob.
Speed control programming only requires a few easy steps.
Reverse is simple, just hold the yellow button for a few seconds.
Programming includes the ability to set bottom and top RPM range separately. In other words you can program
the system to run the spindle at any speed or range of speeds you choose (see below).
Slowest speed achievable: Motor 100 RPM. (Below 300 is not recommended).
Highest speed: 3,500 RPM.
Soft start is programmable and will be set as soft as possible when you receive this motor. This program is very effective in reducing drive belt wear etc.
Braking strength is also programmable and will be set as low as possible. Personally I wish I could set it lower.
Self diagnostics with fault code chart and programming instructions.
Safe turn on system where the speed control knob must be in the full counter clockwise (stop) position when turned on. When turned on the self diagnostic system checks for faults and will not allow the motor to run until the speed control knob is turned all the way to stop first.
Use at your own risk. Our liability is limited to the purchase price of this item.

900 Watt servo motor & Driver 1.2HP 11 NM torque 300~3,500 RPM Face Mount

Name: 900 Watt servo motor & Driver 1.2HP 11 NM torque 300~3,500 RPM Face Mount
SKU: 000006

SKU: 000006

$225.00

Excluding Sales Tax

Motor Specifications:

Watt: 900 (1.20691988 HP)

Voltage: 110 ~ 130 Volts AC single phase

HZ: 60

Torque: 11 N.M.

RPM: 100 to 3,500 RPM in 100 RPM increments.
Note: Manufacturer recommended 500 to 3,000 RPMs
My personal testing results: Greatly improved low speed power/torque.

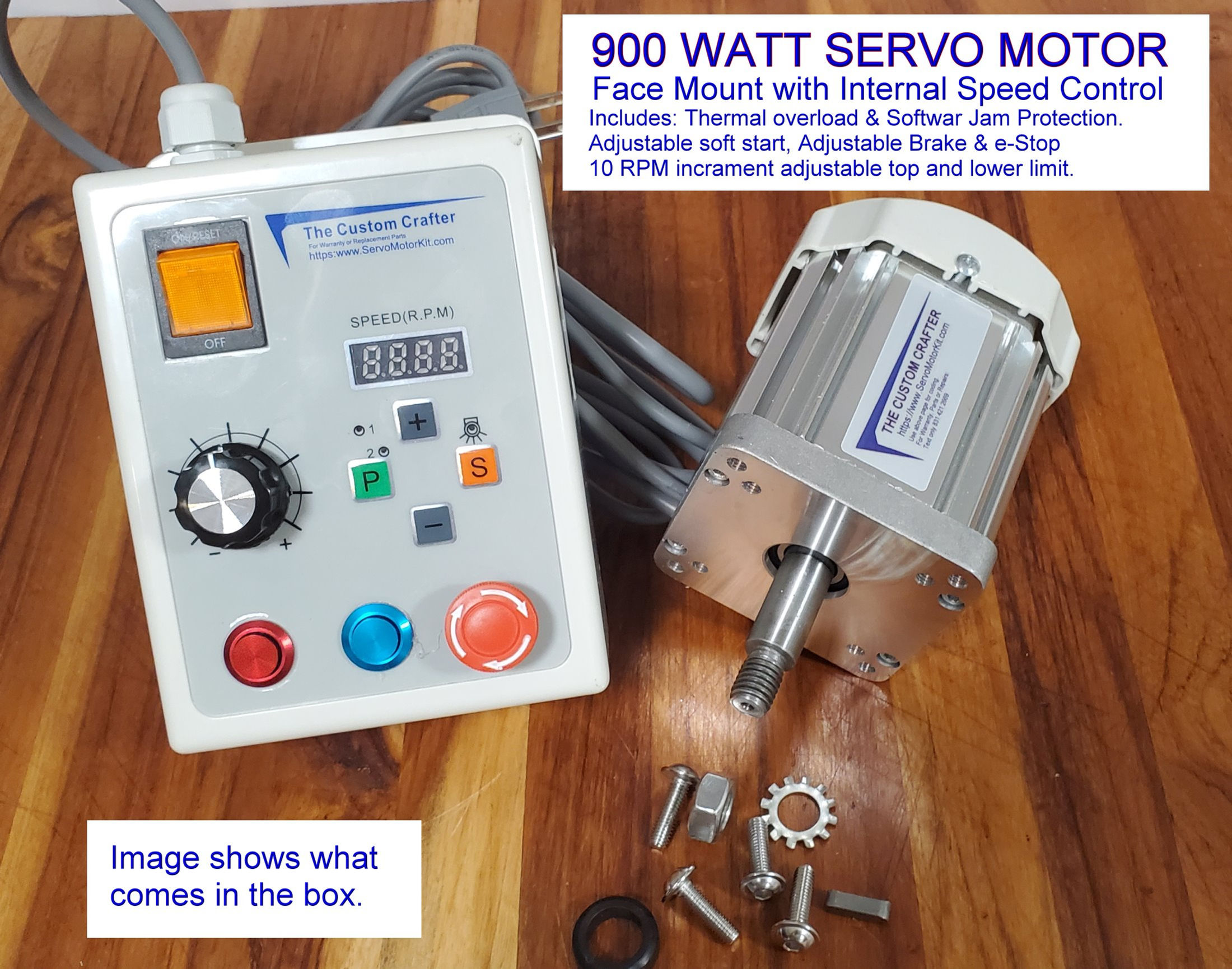

A complete servo motor as seen in image 1.

A programmable custom built stand alone servo motor driver with internal speed control and overload protection.

Mounting hardware (4 alen head bolts)

Key way and shaft nut

Interactive on line programing instructions
900 watt versus 750 watt:

Physically the exterior dimensions are identical.

A 750 weighs in at 4.39 pounds. A 900 weighs in at 5.01 pounds.
The difference being an additional .62 pounds of copper winding's and magnet mass.
Limited 180 day parts warranty. Labor is buyers responsibility:
See details, what's covered and for how long etc below. Shipping both ways for all parts returned for warranty is the buyers responsibility. Parts returned will be inspected for unique identification mark and or abuse. If found to be abuse or missing the identity mark, no warranty exchange part will be provided and buyer will be required to pay shipping to get their parts back. Warranty exchange parts may or may not be new but instead refurbished or demos that I have from previous builds. Warranty starts on the day our records show the system as paid and not the date the item is actually received.

Servo Motor. - I will exchange a defective servo motor for up to 180 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Computer control unit. - I will exchange a defective control unit PCB for up to 180 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Improper instalation or abusive operation is not warrenty.

Limited 45 to 180 day parts warranty. Labor is buyers responsibility:
See details, what's covered and for how long etc below. Shipping both ways for all parts returned for warranty is the buyers responsibility. Parts returned will be inspected for unique identification mark and or abuse. If found to be abuse or missing the identity mark, no warranty exchange part will be provided and buyer will be required to pay shipping to get their parts back. Warranty exchange parts may or may not be new but instead refurbished or demos that I have from previous builds. Warranty starts on the day our records show the system as paid and not the date the item is actually received.

Servo Motor. - I will exchange a defective servo motor for up to 90 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Computer control unit. - I will exchange a defective control unit PCB for up to 45 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Timing pulleys, motor mount and aluminum adapters.
180 days - I will exchange or replace these items at no cost or limited cost to buyer as follows. Buyer will be asked to provide photos. If photos are accepted seller will ship replacement parts at no cost to buyer. If photos are not accepted seller will ask buyer to return parts at buyers expense for inspection before seller warranties these parts.

Timing belt and small parts are not covered. Customer alterations and machine work are not covered and may void the above warranty.

Improper instalation or abusive operation is not warrenty.
Certain items are not returnable (See listings). Items costing less than $15 each are not returnable.

No reason is required.

Buyer pays return shipping.

Buyer provides tracking number that shows the item is in possession of the return shipping company before the 30 day time period runs out.

30 day time period starts when tracking shows original order as in possession of USPS.

Buyer to provide tracking # and shipping company name to be e mailed to servomotorkit@gmail.com within 36 hours of when issued.

Return must be shipped through USPS, UPS or FedEx.

Defective products are always returnable or refundable but will require documentation. See warranty time limits as they are directly related to if a product qualify's as defective. Shipping is always refunded on defective products. You are required to provide proper documentation of said defect.

Shipping is not refundable simply because you changed your mind or the product does not fit. It is your responsibility to look up and or measure to insure proper fit and suitability for your intended use. If you are not sure, ask us. If we say it fits in an e-mail or text message and it does not; than we pay the shipping instead of you.

All items returned must be in like new and unused condition:
This includes original packaging.

Missing packaging will result in a restocking charge of up to 10%

Installed items will not be refunded or charged up to 50% to restore and resell as a refurbished unit.

Swapping out parts will result in no refunds, all warranty's voided and no new orders accepted.
Try honesty instead, we will be happy to assist and find a solution that keeps both of us happy.
All after the sale customer support is done by text to the number included in the box and not through eBay.

All returns during the 14 day return window are done through eBay.

Ask questions before ordering.
