2 HP 1500 Watt Computer Controlled Servo Motor With 2024 control unit.
Built to fit Bolton B290VG

Please note:
The back of the control unit must be open to atmosphere to allow for cooling.
Optionally it can be thermally bonded to any large metal surface. Then the surface
becomes the cooling system.

Look close should fit similar Precision Mathews

Custom Built When You Order:
Lead time is up to 5 days.

Comes with a custom made 2 step pulley designed to match the OEM belt and pulley.
See new 2024 version anodized in red pulley images.
These are custom made by us and a direct fit to our motor as well as to this lathe.
Also greatly reduces runout and or vibration.

Sold with a custom built 2024 control unit:
Includes reverse on the fly and more.
Speed is programmable for any range between 300 to 3,500 RPM.

Current motor face mount design:
Allows for our servo motor to be installed in the original location.

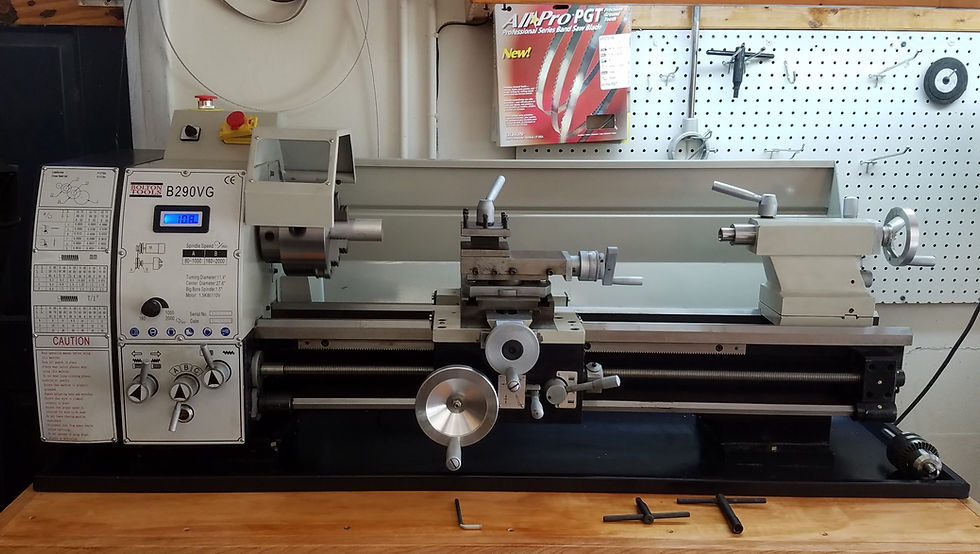

On the Bolton lathe in images, it's simple, just widen 2 of the four slots a little bit.
See You Tube video
See images.

Runs on typical 110 to 120 volt AC household power supply's

Motor programming + spindle speeds and Reverse:

The motor speed can be programmed to operate in any range chosen by the user.
Between 200 and 3,500 RPM's.
Note: Settings are limited to 10 RPM intervals.
The full range of speed (RPM's) can also be controlled with just the speed control knob.
Speed control programming only requires a few easy steps.
Reverse is simple, just hold the yellow button for a few seconds.
Programming includes the ability to set bottom and top RPM range separately. In other words you can program the system to run the spindle at any speed or range of speeds you choose (see below).
Slowest speed achievable: Motor 200 RPM. (Below 300 is not recommended).
Highest speed: 3,500 RPM .
Soft start is programmable and will be set as soft as possible when you receive this motor. This program is very effective in reducing drive belt wear etc.
Braking strength is also programmable and will be set as low as possible. Personally I wish I could set it lower.
Self diagnostics with fault code chart and programming instructions are available on our web site.
Safe turn on system. If the power goes out, the speed control knob must be returned to stop
before the motor will run.. When turned on the self diagnostic system checks for faults and will not allow the motor to run until the speed control knob is turned all the way to stop first.
Remote stop/start without self diognostics step above is possible. This is a use at your own risk
function made possible for those wishing to instal a trigger, travel or CNC switch.
Use at your own risk. Our liability is limited to the purchase price of this item.

Bolton B290VG Lathe Motor Upgrade 2 HP Servo BLDC

$398.00

Excluding Sales Tax

Watt: 1500 (2 HP)

Voltage: 110V - 120V single phase AC. (220 - 250V AC single phase is available by request)

HZ: 60

Torque: 16 N.M.

RPM:    300 to 3,500 RPM in 10 RPM increments.
My personal testing results: This motor runs best between 300 and 3,100 RPMs.

Spindle speed results in the test Bolton lathe:

Low speed:
Motor             200 to 3,000 RPM
Spindle          78 to 800 RPM +/- 5%

High Speed:
Motor 300 to 3,000 RPM
Spindle 160 to 1,680 RPM +/- 5%
1,500W servo motor.

16 NM torque.

300 ~ 3,500 RPM's. in 10 RPM incraments.

Complete stand alone driver/controller.

Overload protection built in.

Custom made Rotary speed control switch designed
so it can be built in to the original location.

One step reverse function.

Programmable with:

Adjustable soft start.

Adjustable soft to rapid braking.

Maintains set RPM regardless of load changes while cutting.

Custom made two step drive pulley:

Wide angle 2 speed pulley anodized in red.
This puley is near the same ratios as your original.

New Wide Angle Belt:

Gates 7M875 Polyflex Wide Angle Belt.

Button head mounting bolts:

Used to ease slot work and fit face mount to existing mounting plate.
Limited 180 day parts warranty. Labor is buyers responsibility:
See details, what's covered and for how long etc below. Shipping both ways for all parts returned for warranty is the buyers responsibility. Parts returned will be inspected for unique identification mark and or abuse. If found to be abuse or missing the identity mark, no warranty exchange part will be provided and buyer will be required to pay shipping to get their parts back. Warranty exchange parts may or may not be new but instead refurbished or demos that I have from previous builds. Warranty starts on the day our records show the system as paid and not the date the item is actually received.

Servo Motor. - I will exchange a defective servo motor for up to 180 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Computer control unit. - I will exchange a defective control unit PCB for up to 180 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Pulleys and aluminum adapters.
180 days - I will exchange or replace these items at no cost or limited cost to buyer as follows. Buyer will be asked to provide photos. If photos are accepted seller will ship replacement parts at no cost to buyer. If photos are not accepted seller will ask buyer to return parts at buyers expense for inspection before seller warranties these parts.

Belt and small parts are not covered. Customer alterations and machine work are not covered and may void the above warranty.

Improper instalation or abusive operation is not warrenty.
Certain items are not returnable (See listings). Items costing less than $15 each are not returnable.

No reason is required.

Buyer pays return shipping.

Buyer provides tracking number that shows the item is in possession of the return shipping company before the 30 day time period runs out.

30 day time period starts when tracking shows original order as in possession of USPS.

Buyer to provide tracking # and shipping company name to be e mailed to servomotorkit@gmail.com within 36 hours of when issued.

Return must be shipped through USPS, UPS or FedEx.

Defective products are always returnable or refundable but will require documentation. See warranty time limits as they are directly related to if a product qualify's as defective. Shipping is always refunded on defective products. You are required to provide proper documentation of said defect.

Shipping is not refundable simply because you changed your mind or the product does not fit. It is your responsibility to look up and or measure to insure proper fit and suitability for your intended use. If you are not sure, ask us. If we say it fits in an e-mail or text message and it does not; than we pay the shipping instead of you.

All items returned must be in like new and unused condition:
This includes original packaging.

Missing packaging will result in a restocking charge of up to 10%

Installed items will not be refunded or charged up to 50% to restore and resell as a refurbished unit.

Swapping out parts will result in no refunds, all warranty's voided and no new orders accepted.
Try honesty instead, we will be happy to assist and find a solution that keeps both of us happy.
All after the sale customer support is done by text to the number included in the box.

All Warenty and returns are done in house. Use the text number provided in the box to request assistance.

Ask questions before ordering.
There is nothing worse then having an expensive item break 2 days after the warranty expires. As long as there is no abuse, we will offer a solution. This often includes parts at cost and free installation. That is as long as you communicate and pay shipping both ways. Yes, we keep control boards in stock for this reason. We also keep motors, belts and every part used to build these in stock. Just contact us and we will have you up and running within days, not 6 months waiting for parts from China.
